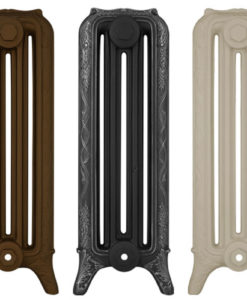

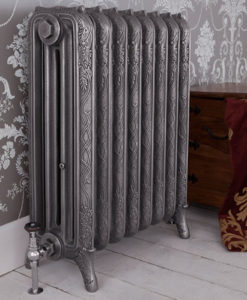

Ribbon 4 Column Cast Iron Radiator (810mm Tall)

Ribbon 4 Column Cast Iron Radiator (810mm Tall)

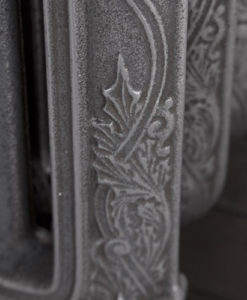

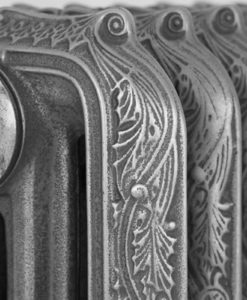

The Ribbon 4 Column Cast Iron Radiator features a Celtic band pattern gracefully flowing down the radiator. Originally manufactured by the American Radiator Company, circa 1880, originals of this model can be typically found in churches throughout the world. If a lower heat output is required we also offer the Ribbon 2 column radiator.

Priced per section with a primer finish. Please get in touch for a personalised quote, see further details below.

Priced Per Section
Our bespoke radiators are custom built section by section to give the correct heat output. You will be required to select the number of sections for the length and heat output that you need.

Finish Options
The radiator comes with a primer finish, however other options are available at an additional cost including: Painted, Hand Burnished, Antiqued/Highlighted and Vintage Copper.

Choose from over 10,000 colours or use Carron’s expert colour matching service to attain a even greater level of customisation. Please note that colours can vary from printed brochures and those shown on our website, we recommend a free colour swatch prior to purchase.

Add-ons Available
Valves, shrouds and wall stays are available to purchase separately to match this design.

Measurements
Due to our radiators being bespoke and hand assembled, variations in seal compression and the machined faces can occur. We are able to supply measurements prior to dispatch once we have completed the assembly process should you require them.

Carron accepts no responsibility for customers/clients who choose to install pipe work prior to having their cast iron radiators delivered to site.

A
810mm

B
265mm

C
630mm

D
112mm

E
290mm

F
71mm

DELTA 50*

BTUS
579

WATTS
170

DELTA 60*

BTUS
740

WATTS
217

WEIGHT (KG)*

EMPTY
19.2

FILLED
22

*per section.
The above measurements are given for guidance only and should not be used for the fixing of pipework.
