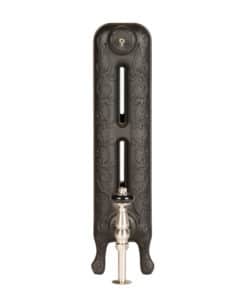

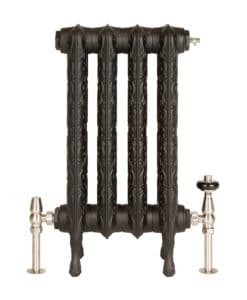

Prince Cast Iron Radiator (580mm)

Prince Cast Iron Radiator (580mm)

A tall, slender radiator, the Prince 580mm fits neatly below windows and spaces with limited space such as small bathrooms and dressing rooms. An ornate foliage motif adds detail to the traditional school radiator outline. Also available in 750mm height. Pneumatically assembled in Manchester and built up to 1.1m for delivery in one piece or up to 2m with partial home assembly.

Sections
Our bespoke radiators are custom built section by section to give the correct heat output. You will be required to select the number of sections for the length and heat output that you need.

Wall Stays
This radiator also requires two wall stays, which are a necessary safety feature – they secure the radiator to the wall and prevent it from falling over if knocked.

Radiator Finish Options
View our entire range of finish options available here.

Measurements
Our radiators are hand assembled so we can’t give 100% accurate pipe centre measurements before they’ve been made. Let us know when placing an order if your plumber is planning to lay pipes before it arrives and we’ll send you the exact measurements usually within 72 hours of an order being placed. Your plumber can then drill holes in the floor and lay position the pipework with absolute confidence.

Leg section height: 585mm
Middle section height: 520mm
Section length: 73mm
Radiator depth: 140mm
Bottom inlet to floor: 116mm
Top inlet to floor: 546mm
Pipe centres to skirting board: 72mm
Empty weight leg section: 6.2kg
Empty weight middle section: 5.4kg
Internal volume section: 1.4 l

Installation
We supply all our radiators with 1/2” BSP connections to pair with all of our valves and most valves available elsewhere too. We can provide any valve configuration but as standard we’ll always fit them bottom opposite ends (BOE).
