Pewter Gothic Lever Espagnolette Lock Set

Pewter Gothic Lever Espagnolette Lock Set

The Espagnolette version of the Gothic handle is designed to be used in conjunction with Multi-point Locking Systems and Euro Cylinder and allows your door to be locked from inside or out. Ideal for traditional timber or the more modern composite front doors or ideal replacement of existing Espag. handles.

The handle is ‘unsprung’ to allow the upward locking movement needed with multi-point locks. It has standard centres of 92mm to work woth all espagnolette locking systems. For standard doors a Euro Cylinder of 35/35 (70mm) would suit but if your door is thicker than 50mm you will need a longer cylinder. Made entirely from steel these beautifully hand crafted levers are not only pleasing to the eye but also comfortable to use.

Sold as a set and supplied with necessary fixings. Suitable for internal or external use but maintenance instructions must be followed to preserve the finish of your product. Finished in Pewter. The Gothic Euro lever lock set is part of the blacksmith’s range of lever handles that is individually forged in steel on an anvil.

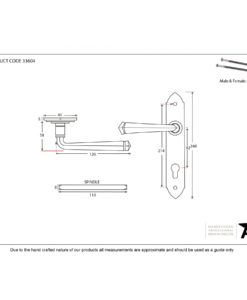

Measurements
Backplate Size: 9 3/4″ x 1 3/4″ (248mm x 44mm)
Handle Length: 4 3/8″ (110mm)
Centres: 3 5/8″ (92mm)
Fixing Centres: 7 1/2″ (192mm)
Backplate Thickness: 5mm
